DJ Adams

Modules, modularity & reuse in CDS models - part 1 - an introduction

In this first post of a new series I look at the using directive in CDS modelling, and how NPM modules can be fundamental building blocks in modularity and reuse.

You know the drill: instead of inventing your own versions of core model building blocks over and over again, use common types and aspects for reuse, like this:

using {
  managed,
  cuid,
  Currency
} from '@sap/cds/common';

namespace qmacro;

entity Books : managed, cuid {
  title    : String;
  price    : Decimal;
  currency : Currency;
  ...
}

There are plenty more great reasons to use @sap/cds/common, by the way.

But how does that using ... from actually work, what is going on with what looks like some sort of NPM module reference, i.e. @sap/cds/common?

Imports and model resolution

The Model Imports section of the CDL topic in Capire explains it. Basically, model definitions, most commonly in .cds files, can be imported from relative or absolute paths, or from NPM modules. Either way, the reference will result in a file specification or a directory specification; if it's a directory, then an index.cds will be loaded from within.

In addition to .cds, file extensions .csn and .json are also supported. In fact it's good practice to omit the extension when specifying an import source, to allow these possibilities to be automatically enumerated.

Of course, for an NPM module source to be used, it has to be present, i.e. added to the project (thus the resolved path will be within the project's node_modules/ directory).

The @sap/cds/common reference, shown in the code snippet above, is a special case, in more ways than one:

  1. As @sap/cds is fundamental to any CAP Node.js project, it's always going to be available
  2. Even if it's not there locally, i.e. if an initial project npm install hasn't been executed, it's still available from the global CAP Node.js runtime
  3. It's a reference to a location within the @sap/cds module, i.e. to common

That reference also follows the good practice of not using an extension; common here translates into the file common.cds within @sap/cds in the project's node_modules/ directory (or the global one in special case #2).

So NPM module based sources, including @-prefixed ones, work pretty much exactly the same way as plain file or directory references, such as this classic:

using {sap.capire.bookshop as my} from '../db/schema';

Modules in the capire namespace

In the August 2025 release of CAP, which I covered in detail in this SAP Developer News episode, the new capire org on GitHub was announced, as the home of docs and samples for CAP.

In this org there are already plenty of CAP project repos, including those originally contained in the (now archived) sap-samples/cloud-cap-samples repo. In their new home, though, there are some intriguing differences.

Module capire/bookshop

Take capire/bookshop for example.

First, it's on its own, in fact all the CAP projects from within the sap-samples/cloud-cap-samples monorepo have been "exploded" out into individual repos. Why? The clue is "reuse".

See BES006 Compose with reuse in mind.

Augmenting that one-word clue is the fact that there's also an NPM package1:

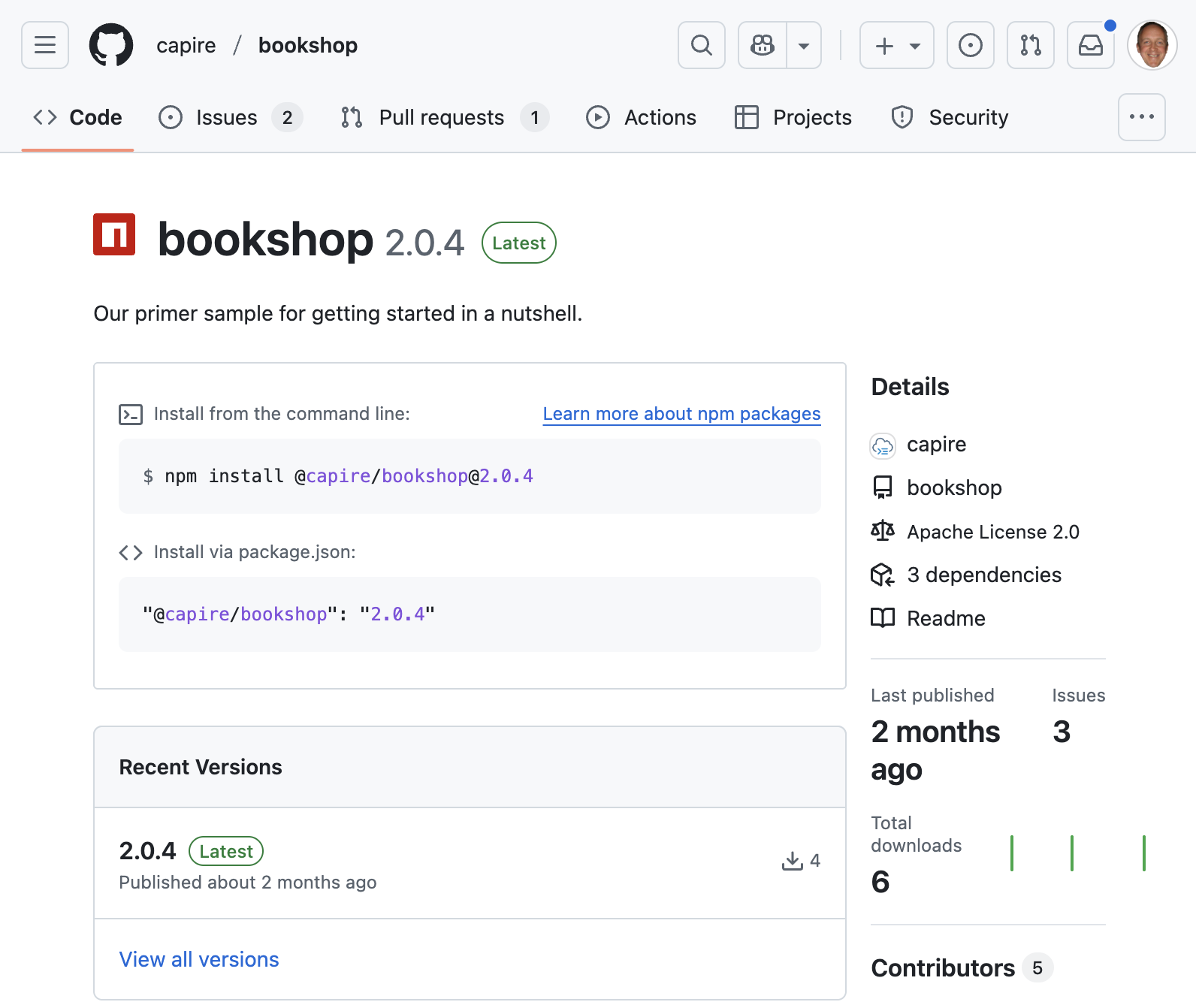

The package page for capire/bookshop on GitHub

Where is this thing? What's it for? How would one use it? How does it work? How do I create my own? I aim to answer these questions, and more, over the course of the subsequent posts in this series.

Regarding the "how would one use it?" question, I have already covered the mechanics of retrieving a module from the NPM registry within GitHub Packages in Using @capire modules from GitHub Packages.

To whet our appetite, let's round this blog post off with a quick look at another module in the capire namespace.

Module capire/common

Alongside capire/bookshop in the list of repositories in the capire org there's capire/common, explicitly denoted as "a reuse content package".

Its README tells us that it's a plugin that extends @sap/cds/common while also providing enhanced reuse data.

Looking at the entire structure of the module, we see:

.
├── LICENSE
├── cds-plugin.js
├── currencies.cds
├── data
│   ├── sap.common-Countries.csv
│   ├── sap.common-Countries_texts.csv
│   ├── sap.common-Currencies.csv
│   ├── sap.common-Currencies_texts.csv
│   ├── sap.common-Languages.csv
│   └── sap.common-Languages_texts.csv
├── index.cds
├── package.json
├── readme.md
└── regions.cds

Most of the files contain data in CSV form, and there are a couple of CDS files brought together via an index.cds file:

        index
          |
    +-----+-----+
    |           |
currencies   regions

(more on that index file mechanism later in this series).

There's also a cds-plugin.js file (see the CAP Node.js Plugins series post for links to videos and blog posts on how plugins are constructed) as this is built to function as a plugin.

There's not much to this module, but it certainly packs a punch! Using it will cause all sorts of goodness to be brought into play in your CAP project.

Later on in this series I'll come to use the term "active" for this sort of plugin-based reuse module, as opposed to "passive" for a reuse module that isn't a plugin.

Wrapping up

In an upcoming post in this series, we'll set up a simple CAP Node.js project and then introduce this @capire/common reuse module and observe what happens. Not only that, but we'll endeavour to understand why and how things happen as they do.

But we want to walk before we can run, so before that, we'll look at creating our own basic reuse module, to understand the simplest thing that could possibly work, and learn along the way not only how to develop and test that module locally, but also how to then add it to the NPM registry on GitHub Packages.

Until next time, happy reuse!

Footnotes

  1. The terms "package" and "module", in the context of NPM, can be used interchangeably. I chose "module" here as it feels more appropriate in how they are to be used to construct the overall CDS model, and also because it helps me put some alliteration into the title of this post :)
